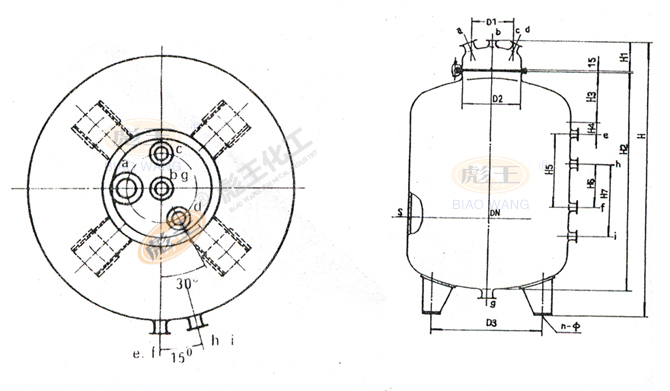

F型贮罐
|
规格Spec/项目ltem
|
CF-3000
|
CF-4000
|
CF-5000
|
CF-6300
|
CF-8000
|
CF-10000
|
CF-12500
|
||
|
DN
|
1450
|
1600
|
1600
|
1750
|
1900
|
2200
|
2400
|
||
|
D1
|
300
|
360
|
360
|
360
|
360
|
420
|
420
|
||
|
D2
|
500
|
600
|
600
|
600
|
600
|
700
|
700
|
||
|
D3
|
1086
|
1240
|
1240
|
1394
|
1544
|
1648
|
1852
|
||
|
D4
|
1015
|
1120
|
1120
|
1225
|
1330
|
1540
|
1680
|
||
|
H0
|
～2970
|
～3208
|
～3758
|
～3974
|
～4214
|
～4075
|
～4312
|
||
|
H1
|
2348
|
2562
|
3112
|
3304
|
3554
|
3394
|
3554
|
||
|
H2
|
275
|
310
|
310
|
310
|
310
|
351
|
351
|
||
|
h1
|
1400
|
1500
|
1800
|
1900
|
2000
|
1900
|
2000
|
||
|
h2
|
584
|
635
|
885
|
911
|
1003
|
770
|
850
|
||
|
h3
|
270
|
308
|
358
|
424
|
416
|
356
|
460
|
||
|
4～d0
|
4-φ30
|
4-φ30
|
4-φ30
|
4-φ30
|
4-φ30
|
4-φ30
|
4-φ36
|
||
|
管口表
Nozzle Schedule |
手孔
Handhote |
h
|
100
|
125
|
125
|
125
|
125
|
125
|
125
|
|
进口
Feeding |
a
|
65
|
65
|
65
|
65
|
65
|
80
|
80
|
|
|
备用口
Free |
b
|
65
|
65
|
65
|
65
|
65
|
65
|
65
|
|
|
备用口
Free |
c
|
65
|
65
|
65
|
65
|
65
|
65
|
65
|
|
|
液位计
Level |
d1-2
|
65/50
|
65/50
|
65/50
|
65/50
|
65/50
|
65/50
|
65/50
|
|
|
Indicator
|
e1-2
|
65/50
|
65/50
|
65/50
|
65/50
|
65/50
|
65/50
|
65/50
|
|
|
出口
Discharge |
t
|
125
|
125
|
125
|
125
|
125
|
125
|
125
|
|
|
全容积 TOT Volume(L)
|
3386
|
4481
|
5591
|
7100
|
8987
|
11264
|
13994
|
||
|
设备总量 T.W.of Eqpt(kg)
|
1700
|
2070
|
2500
|
3000
|
3600
|
4500
|
5700
|
||
K型贮罐
| 规格Spec/项目ltem | CK-50 | CK-100 | CK-200 | CK-300 | CK-500 | CK-1000 | CK-1500 | CK-2000 | CK-3000 | CK-5000 | |
| DN | 500 | 500 | 600 | 700 | 800 | 1150 | 1300 | 1300 | 1600 | 1600 | |
| D1 | 300 | 300 | 360 | 420 | 480 | 600 | 780 | 780 | 900 | 900 | |
| D2 | 350 | 350 | 420 | 490 | 560 | 805 | 910 | 910 | 1120 | 1120 | |
| H0 | ～995 | ～1245 | ～1480 | ～1617 | ～1740 | ～2180 | ～2220 | ～2603 | ～2615 | ～3685 | |
| H1 | 470 | 730 | 975 | 1070 | 1400 | 1533 | 1550 | 1975 | 1815 | 2785 | |
| H2 | 275 | 275 | 309 | 349 | 384 | 470 | 505 | 505 | 580 | 580 | |
| h1 | / | 167 | 185 | 185 | 180 | 200 | 180 | 200 | 190 | 190 | |
| h2 | / | 230 | 400 | 500 | 800 | 800 | 800 | 1200 | 1000 | 1200 | |
| 3～d0 | 3-φ18 | 3-φ18 | 3-φ25 | 3-φ25 | 3-φ25 | 3-φ25 | 3-φ30 | 3-φ30 | 3-φ30 | 3-φ30 | |
|
人、手孔 Manhole/Hamdhole |
m(h) | 100 | 100 | 125 | 125 | 125 | 125 | 400×300 | |||
|
进口 Feeding |
a | 65 | 65 | 65 | 65 | 65 | 100 | 100 | 100 | 100 | 100 |
|
备用口 Free |
b | 65 | 65 | 65 | 65 | 65 | 100 | 100 | 100 | 100 | 100 |
|
备用口 Free |
c | 65 | 65 | 65 | 65 | 65 | 100 | 100 | 100 | 100 | 100 |
|
备用口 Free |
d | / | / | / | / | 65 | 100 | 100 | 100 | 100 | 100 |
|
液位计 Level |
e1～2 | / | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 |
|
出口 Discharge |
f | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 125 | 125 |
|
全容积 TOT Volume(L) |
78 | 150 | 292 | 445 | 754 | 1730 | 2254 | 2818 | 4007 | 5964 | |
|
设备总量 T.W.of Eqpt(kg) |
185 | 231 | 280 | 480 | 610 | 1200 | 1540 | 1555 | 2175 | 2795 | |
